3DP-HIPS3-01-OR

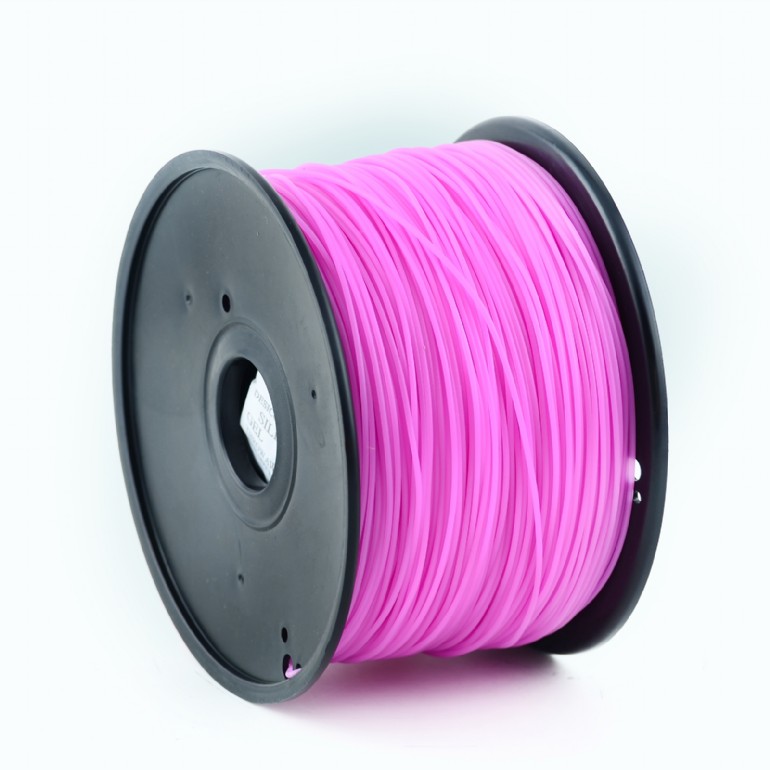

HIPS Orchid, 3 mm, 1 kg

  • VERSATILE & EASY TO USE
  • Practical liquid soluble HIPS material (High impact polystyrene) is a versatile, economical and impact-resistant support material.
  • HIPS is soluble in Limonene and can be glued by acetone or superglue (Cyanoacrylate).
  • Can be used as both standalone material and support material for over-lengths and holes in ABS parts.


  • HIPS filament
  • Maintains strength in high-impact applications
  • Easily moldable, good dimensional stability and low volatility
  • Suitable for use in a variety of 3D printers
  • Can be easily glued and painted
Specifications
Material: HIPS, 3 mm diameter
Weight: 1 kg/spool (2.2 lbs)
Length: approx. 140 m
Density at 21.5?C: 1.04 g/cm3
Melt Flow Index at 10min, 2.16kg: 4
Melt Point: 225 - 240 ?C
Heat-Deflection-Temperature at 0.455 MPa: 7 ?C
Yield Strength at 5mm/min: 80 - 90 MPa
Impact Strength: 10 KJ/m2
Ensile Break: 55 %
Diameter: 3.00± 0.05 mm
Spool dimensions: 165 mm diameter x 100 mm height x 40 mm central hole

System requirements
A 3D printer with 3 mm extruder of temperature around 230 ?, suitable for HIPS filament
Do not remove 3D printed parts until they are fully cooled down

Packing Details
Q'ty in crtn, pcs12
Crtn volume, CUM0.050616
Crtn weight, kgs16
Individual package size LxWxH:180x180x115 mm
Carton size LxWxH:380x360x370 mm
Country of originCN
Barcode8716309089524
Customs code3916909000
Packaging1 Rol/ds

Trade Mark

Package preview
Filaments box (1601 kb)
